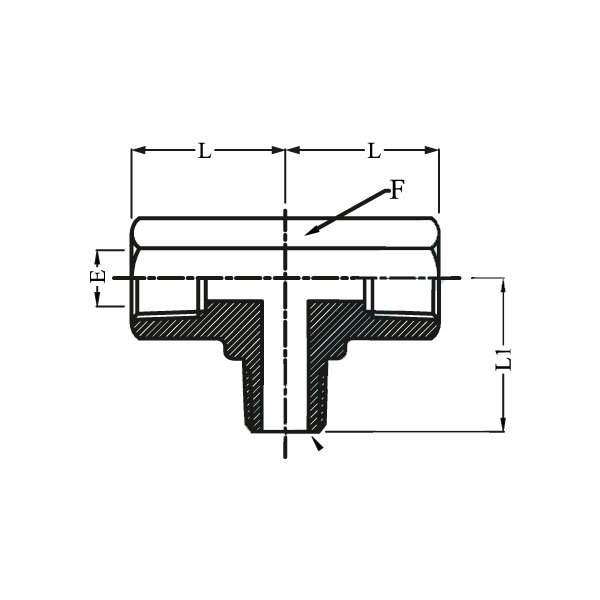

Branch Tee



Model No P
Male & Female
NPT Size
L L1 E F
A/F
YE-95-BT-06N 1/8″ NPT 26.4 22.1 4.5 15.0
YE-95-BT-08N 1/4″ NPT 29.7 29.7 7.0 19.0
YE-95-BT-10N 3/8″ NPT 36.1 32.0 9.5 22.0
YE-95-BT-15N 1/2″ NPT 39.6 39.6 11.8 27.0
YE-95-BT-20N 3/4″ NPT 48.7 49.0 15.0 32.0
YE-95-BT-25N 1″ NPT 48.5 49.0 22.0 41.0
