Manifolds are specially designed Needle Valves for operation with most of the Fluids up to 6000 psig (414 barg) and on special request up to 15,000 psig (1035 barg) ratings. These valves are complete with PTFE gland packing or with Graphoil gland packing (For high temperature applications). Placing the gland packing below the stem thread ensures that the process does not get in contact with the Stem threads. Tightening of the upper gland body ensures perfect sealing of the gland packing and arrests leakage.

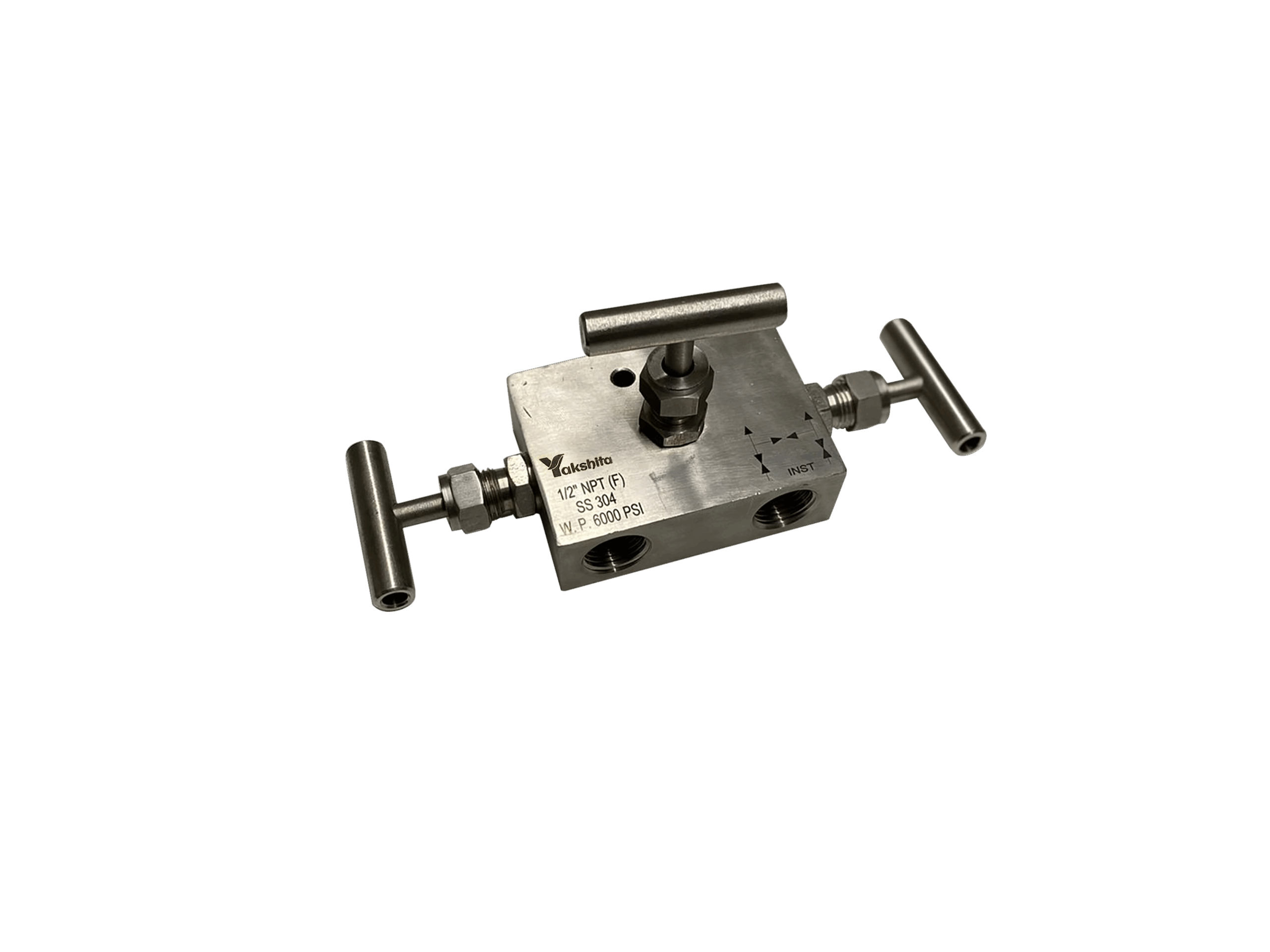

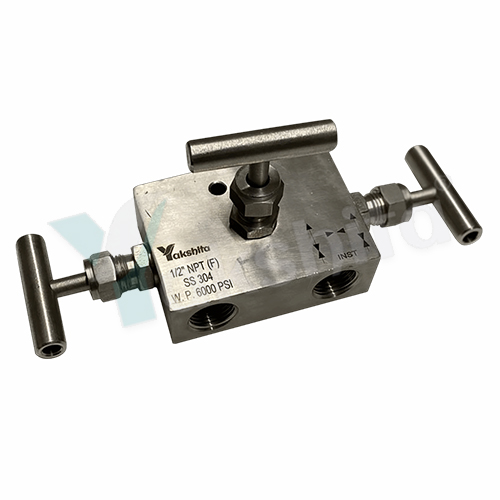

Manifold Valves
Manifold Valves
Manifold Valves

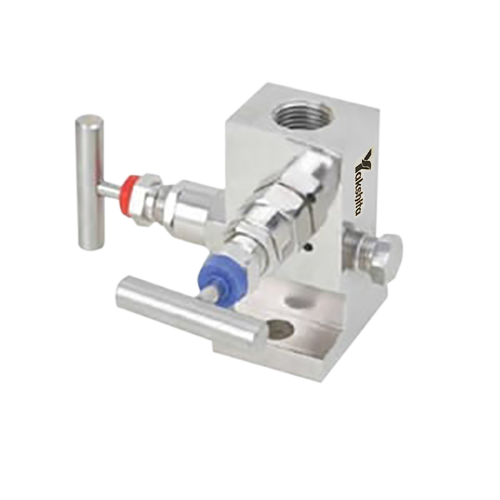

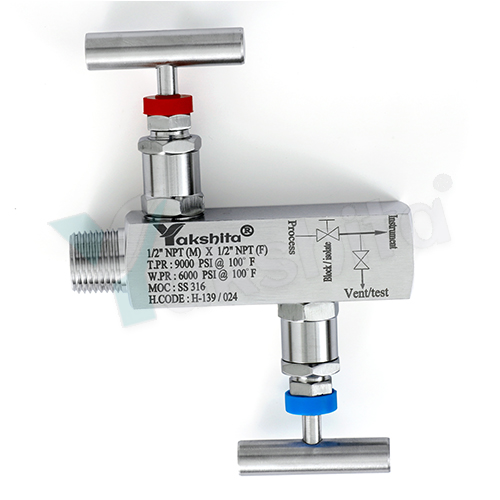

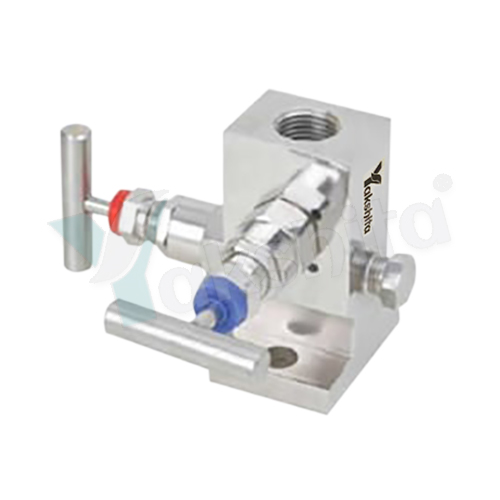

Two Valve T Type Manifold for Pressure Instruments

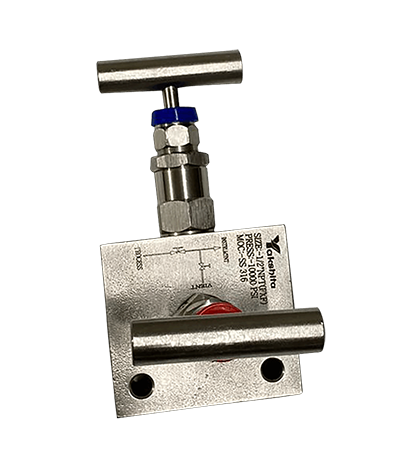

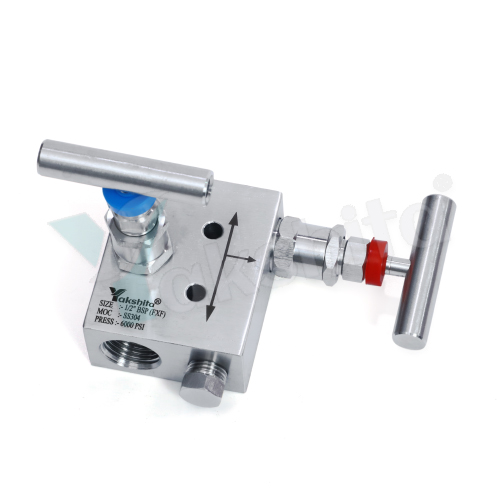

Two Valve Manifold Remote Mount Pipe intp Pipe

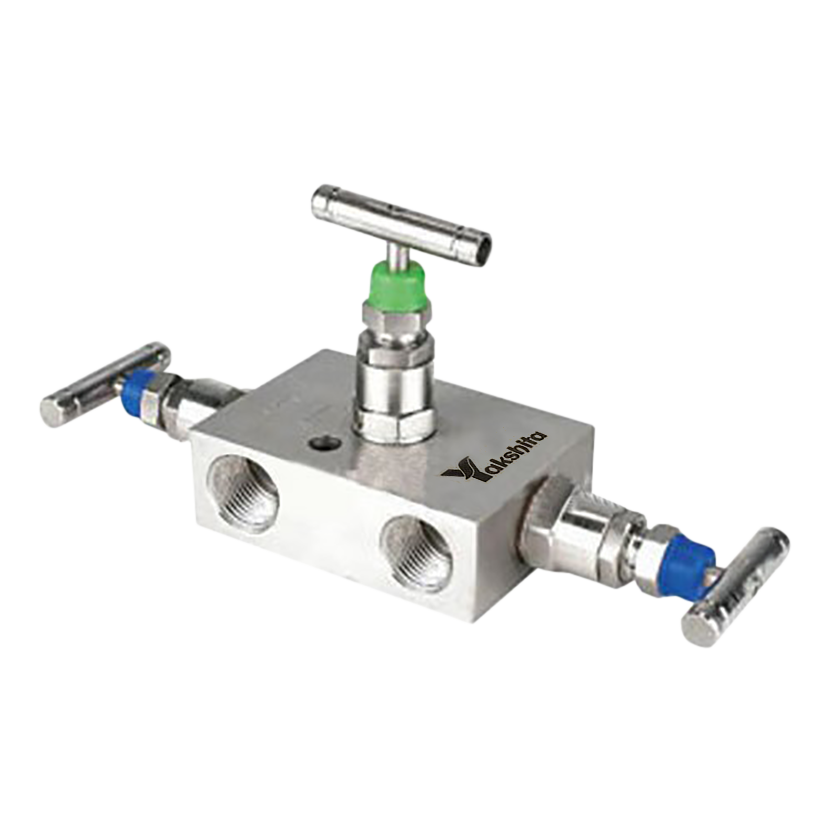

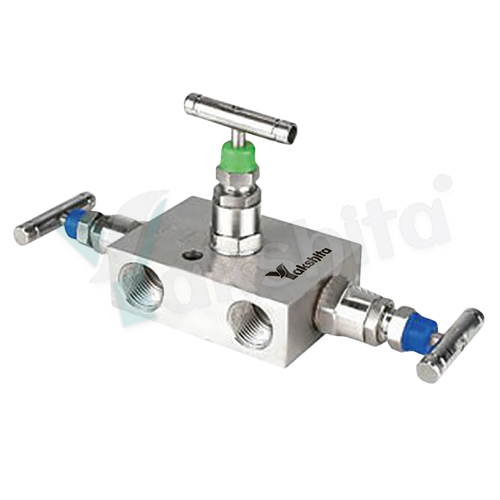

Three Valve Manifold Remote

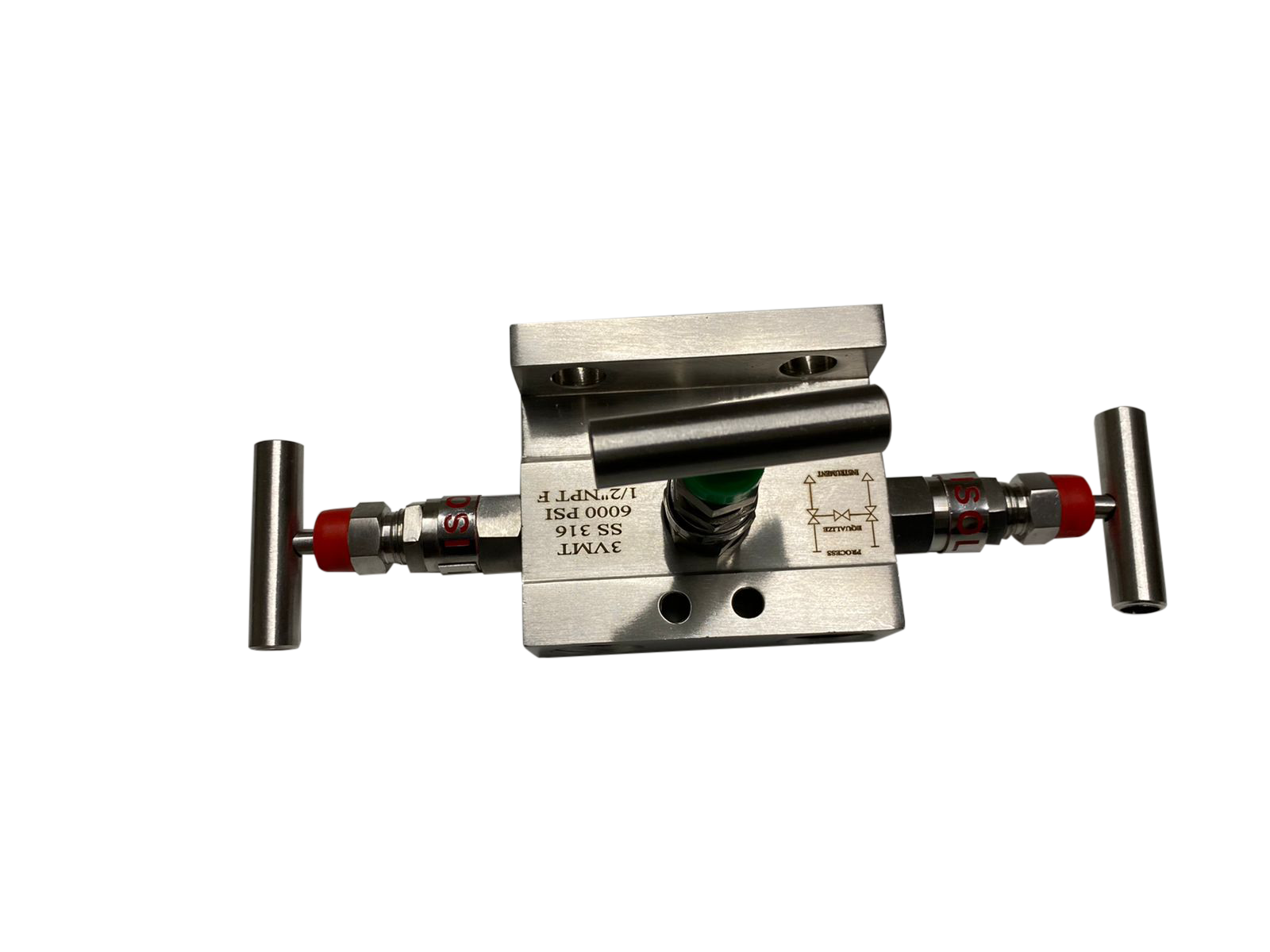

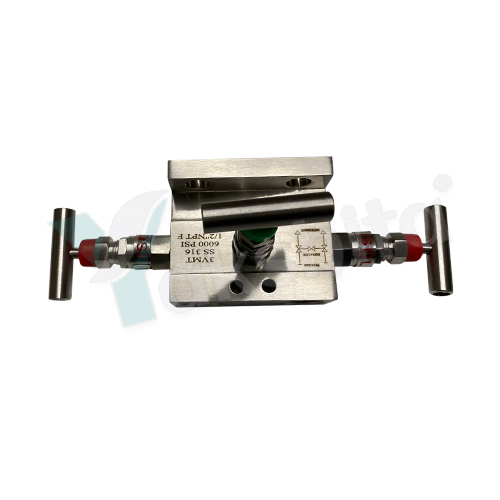

Three Valve Manifold Direct Mount T Type Pipe into Flange

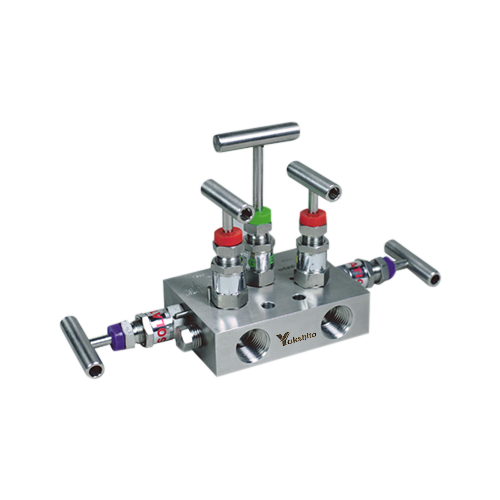

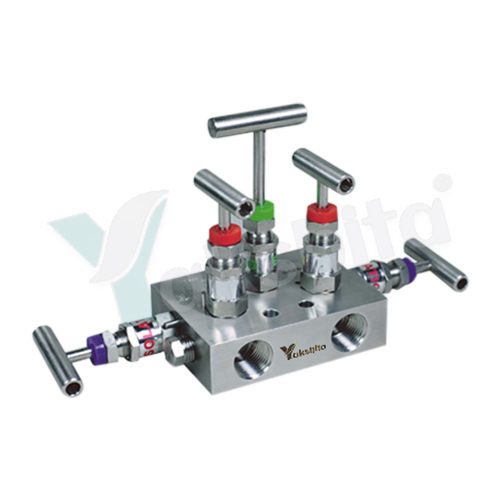

Five Valve Manifold Remote Mount

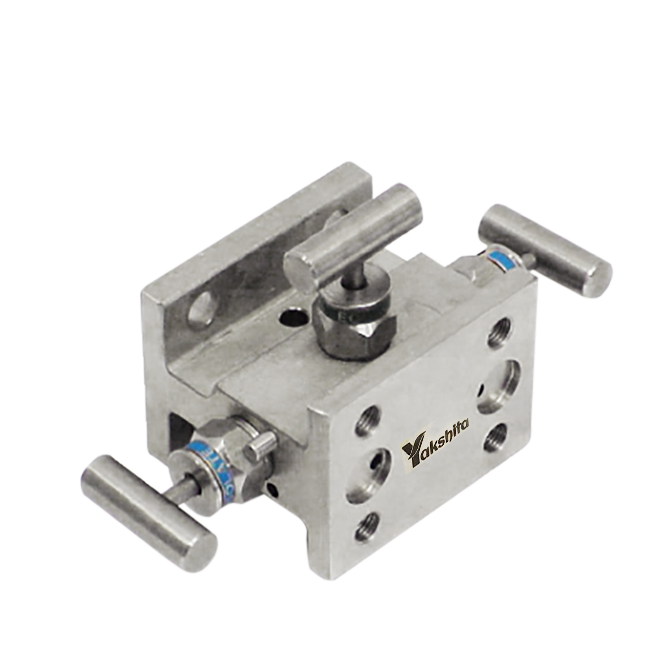

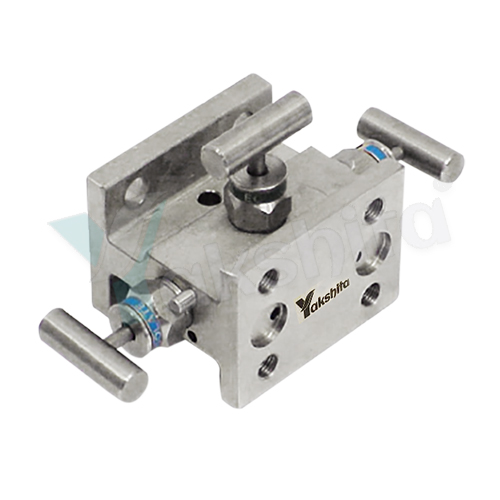

Three Valve Manifold Direct Mount H Type2

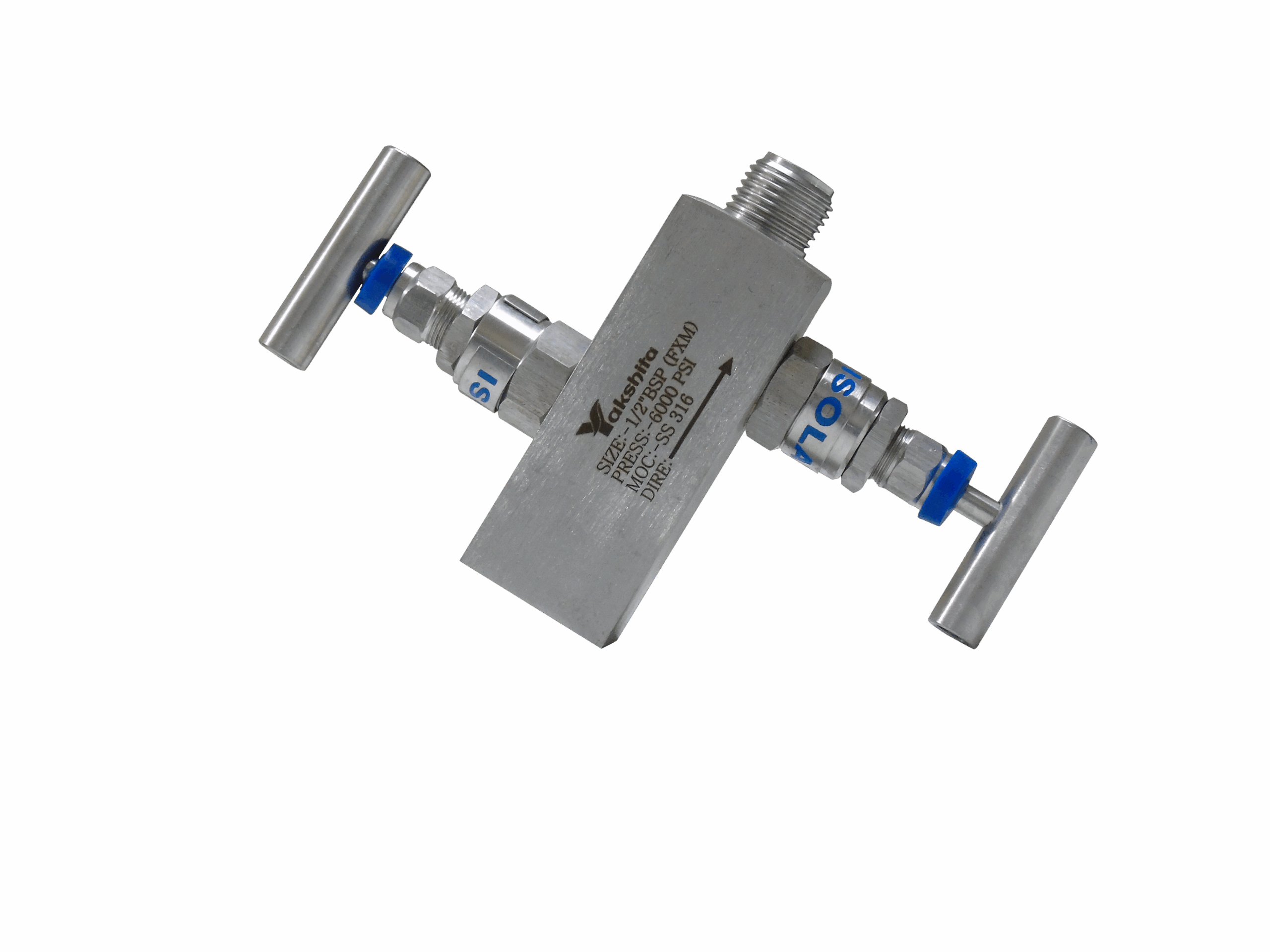

Double Block and Bleed Gauge Valves
