Round Body Ball Valve
FEATURES
Maximum working pressure:
3000 psi (206 bar) at 100°F (38°C)
Working temperature:
From-30°C to 180°C with PTFE seat
A 316 stainless steel handle covered with vinyl sleeve gives quarter turn rust-free operation.
Valves with PTFE seats are supplied with sleeves on handles. A robust pin is to create a positive stop.
The stem with shoulder provides blowout proof design to maintain seal integrity at all pressure.
Optional sour gas service conforms to NACE Mr0175.
Ball valves are hydrostatic tested at the full rated pressure and low pressure pneumatic at 70 psi.
100% factory test
Description

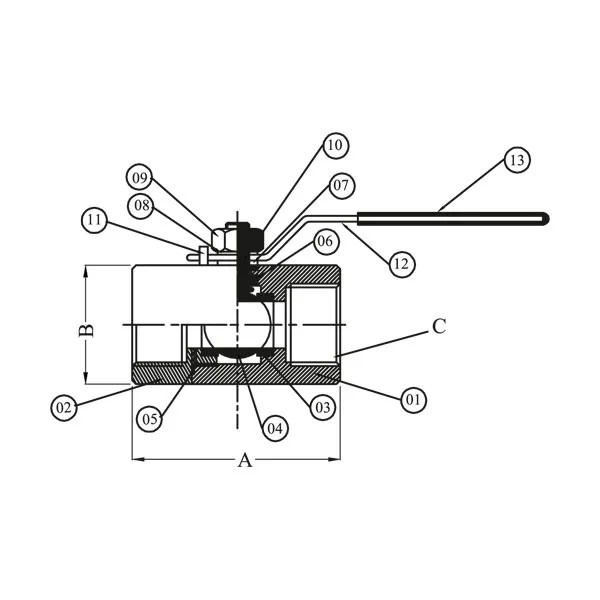

Bill of Material
Sr. No. | Description | Material | Qty |
1 | Body | SS316 | 1 |
2 | Adaptor | SS316 | 1 |
3 | Seat Ring | PTFE | 2 |
4 | Ball | SS316 | 1 |
5 | Gasket | PTFE | 1 |
6 | Gland Seal | PTFE | 2 |
7 | Gland Washer | SS316 | 1 |
8 | Spring Washer | SS | 1 |
9 | Lock Nut | SS316 | 1 |
10 | Stem | SS316 | 1 |
11 | Stopper Pin | SS304 | 1 |
12 | Handle | SS304 | 1 |
13 | Handle Sleeve | PVC | 1 |
3000 PSI
Model No. | A | ØB | C |
YE-06-BV | 55 | 27 | 1/8″NPT(F) |
YE-08-BV | 57 | 27 | 1/4″NPT(F) |
YE-10-BV | 57 | 27 | 3/8″NPT(F) |
YE-15-BV | 68 | 35 | 1/2″NPT(F) |
YE-20-BV | 72 | 41 | 3/4″NPT(F) |
YE-25-BV | 85 | 48 | 1″NPT(F) |
YE-32-BV | 102 | 63 | 1.1/4″NPT(F) |
YE-40-BV | 105 | 67 | 1.1/2″NPT(F) |
YE-50-BV | 123 | 86 | 2″NPT(F) |
